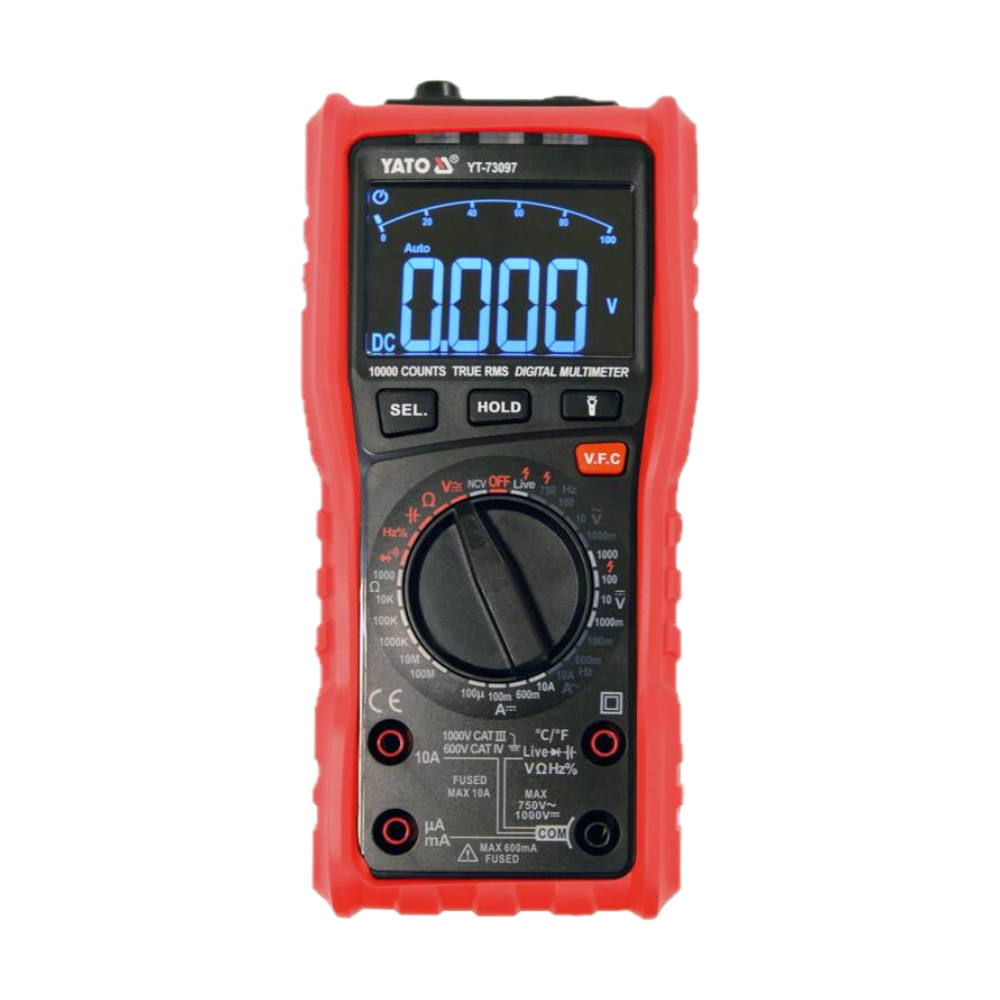

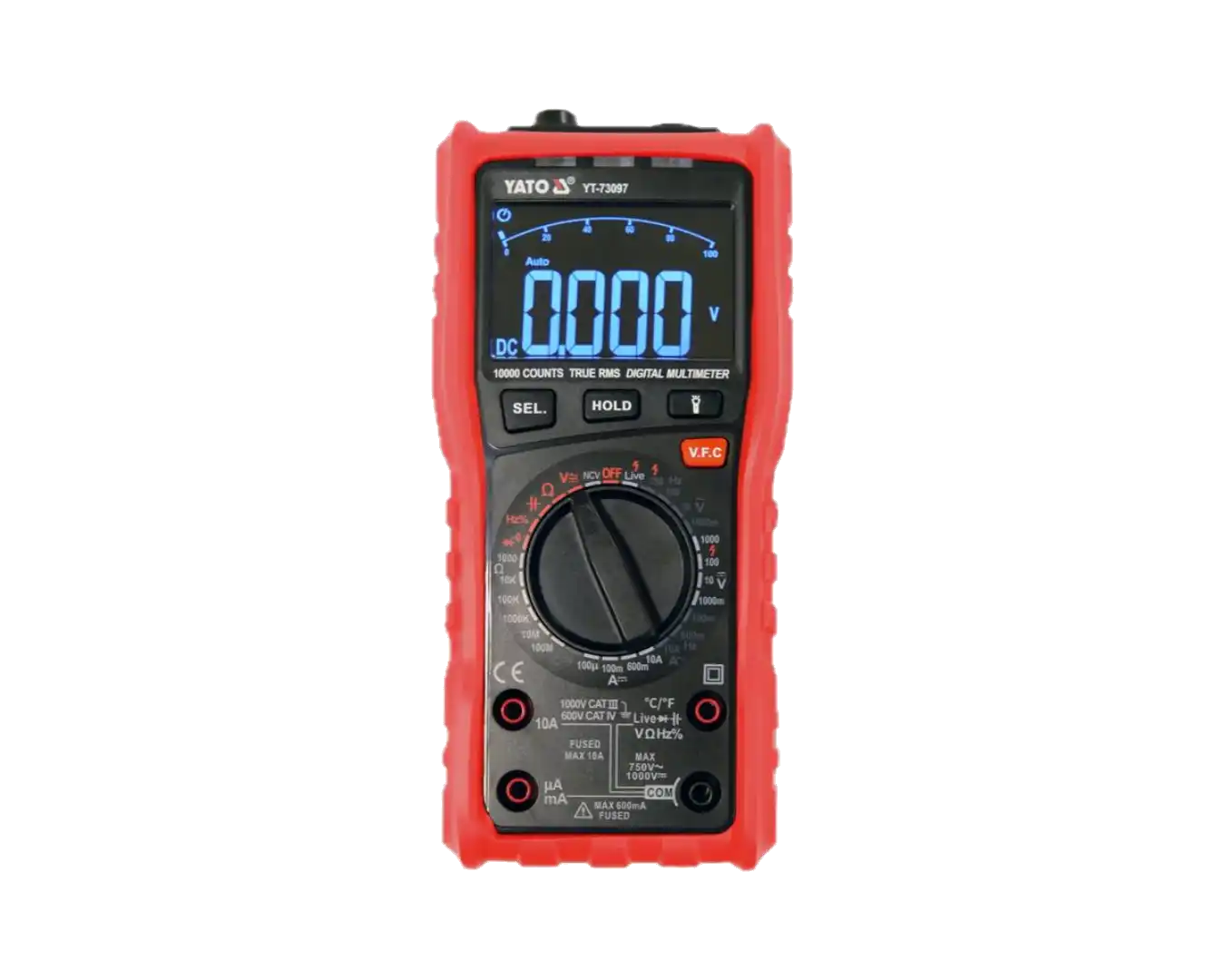

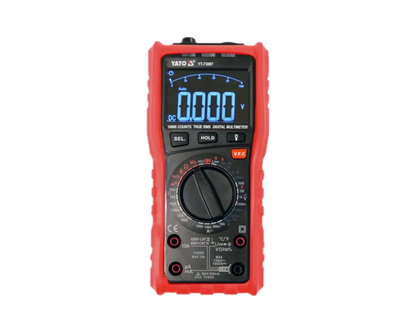

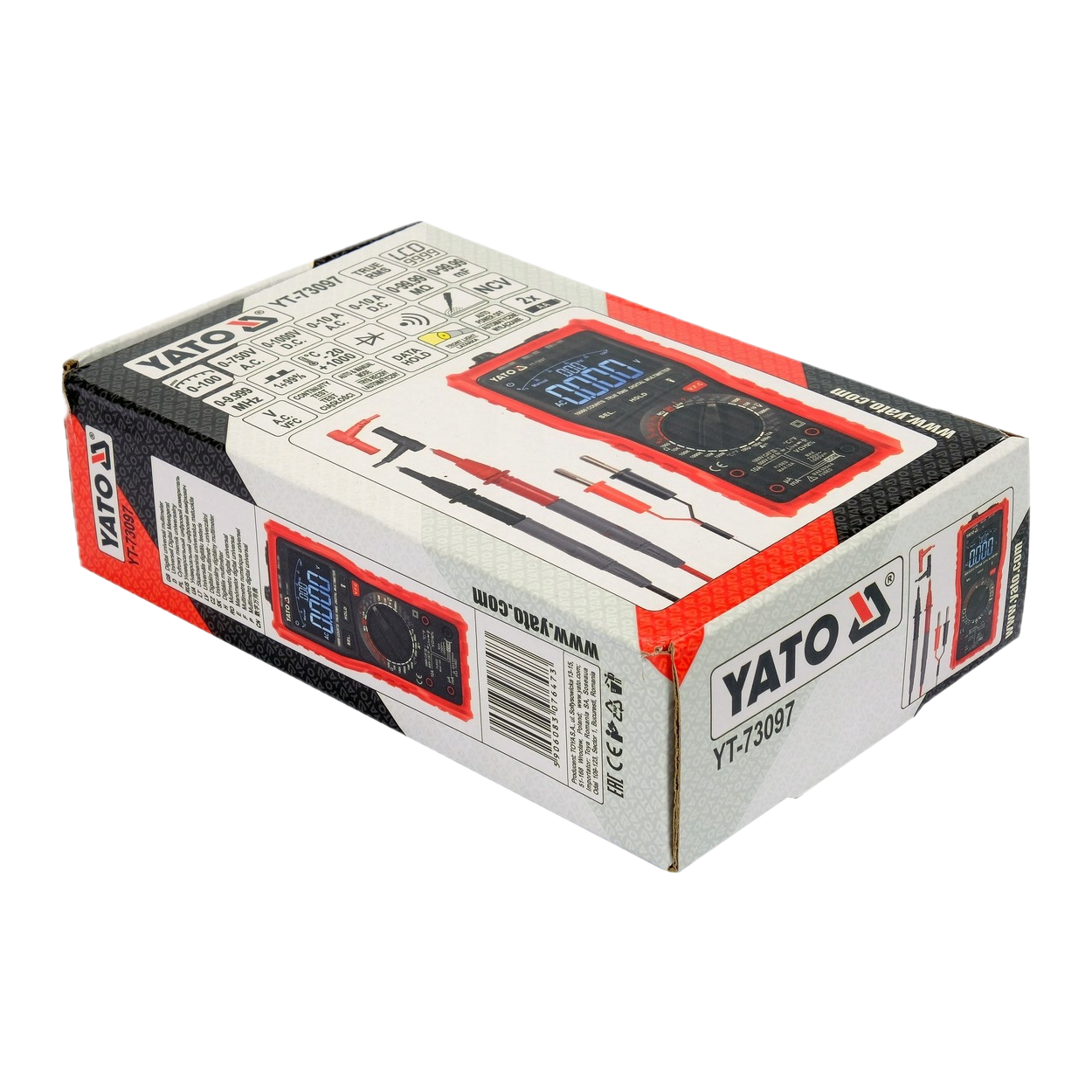

Yato Digital Multimeter TRUE RMS

The YT-73097 Universal Meter features a unique design with TRUE RMS function and both automatic and manual measuring ranges. It supports basic and advanced electrical measurements, displayed on a large multifunction LCD screen that can show two values simultaneously.

Specifications:

• AC Voltage: 0-750V (TRUE RMS + V.F.C.)
• DC Voltage: 0-1000V
• AC Current: 0-10A (TRUE RMS)
• DC Current: 0-10A
• Resistance: 0-99.99MΩ
• Diode Test: IF 1mA, UR 3.2V
• Circuit Continuity: 0-30Ω
• Capacitance: 0-99.99mF
• Frequency: 0-9.999MHz
• Duty Cycle: 1-99%
• Temperature: -20 to 1000°C
• Non-contact AC Voltage Detection: NCV

Features:

• TRUE RMS: Accurate AC voltage/current measurement for both sinusoidal and non-sinusoidal waveforms.
• NCV: Non-contact voltage detection.
• LIVE: Phase presence test using measurement probes.
• V.F.C.: Low-pass filter for accurate motor controller measurements.
• AUTO: Automatic range adjustment.
• SEL: Mode change between AC and DC measurements.
• HOLD: Retain measured value on display.
• LATCH: Built-in work light.
• Durability: Red rubber holster for grip and drop protection.

Additional Information:

• Display: 9999 max result
• Continuity Test: Audible and light signals below 30Ω
• Auto Mode: Diode and continuity tests
• Probes: 15 cm probes, 110 cm total length
• Protection: Overload and protection for current and voltage
• Safety: CAT IV up to 600V
• Power Supply: Two 1.5V (AA) batteries
• Auto Shutoff: After 10 minutes of inactivity
• Low Battery Indicator
